JP Heater Diesel Combi D4E D6E Boiler and Space Heater Complete Kit With Optional Valves for Campervan Motorhome

4 / 5

JP Heater Diesel Combi D4E D6E Boiler and Space Heater Complete Kit With Optional Valves for Campervan Motorhome

reviews

Product Tag:

Notes: The price is the unit price of the product, excluding import taxes. The import taxes need to be paid when you receving the package. If you need us to help you to handle the import taxes in advance, pls contact us before placing the order.

Product Description

JP Heater Diesel Combi D4E D6E Boiler and Space Heater Complete Kit With Optional Valves for Campervan Motorhome

The JP Diesel Combi heater is a hot water and warm air integrated machine, which can provide domestic hot water while heating the occupants. This heater allows use during driving. This heater also has the function of using local electricity heating.

* There is only one device for vehicle heating and hot water, which takes up less space.

* The work operation is economical and
energy-saving, with a mixed mode of gas and mains.

* Through the four warm air passages, the warm air is sent to the best position
for vehicle heating.

* The standard antifreeze safety drain valve can automatically drain water when the temperature reaches 1-4°C.

* The intelligent high court function allows you to enjoy the beautiful scenery of the plateau with peace of mind.

* It can be combined with the air conditioner to realize automatic temperature control.

* Standard water inlet valve.

We provide heating and hot water system solutions for RVs, caravans, and commercial vehicles. If you need the products in the solution, you can contact us

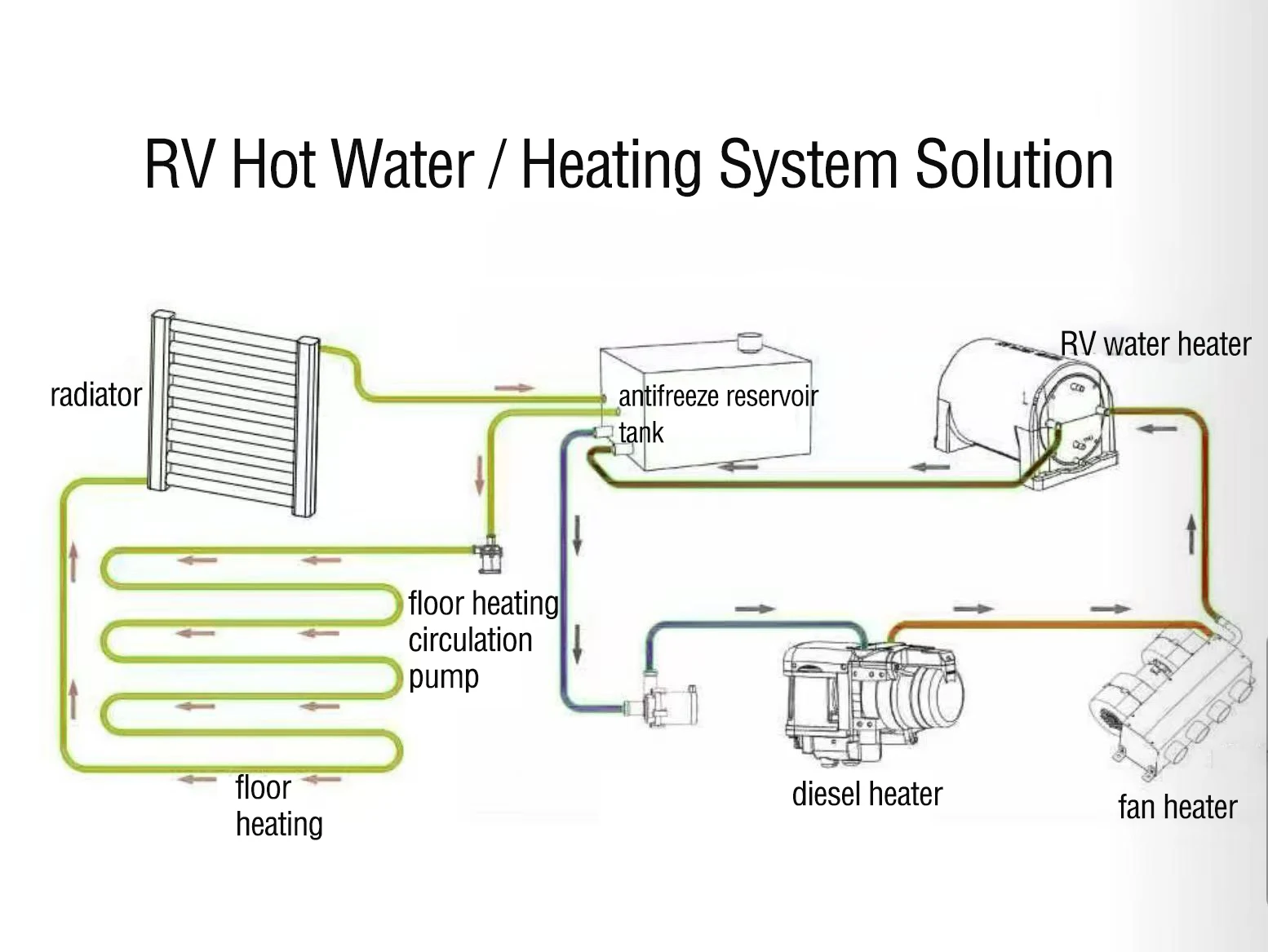

RV Hot Water/Heating System Solution

The RV hot water heating system uses fuel heating as the core heat source, and connects subsystems such as underfloor heating, radiators, and hot water supply to achieve efficient supply of space heating and domestic hot water.

core component

diesel heater：Take oil from the fuel tank and burn it to provide a stable heat source for the system.

antifreeze reservoir tank：Store antifreeze to prevent pipeline freezing in low-temperature environments.

floor heating circulation pump：Drive the antifreeze to circulate in the underfloor heating pipeline, transferring heat to the ground.

floor heating：Lay it under the floor and achieve uniform heating through the circulation of antifreeze in the pipeline.

radiator：Auxiliary heating, connected to the heater and storage tank through pipelines, expands the coverage of heating.

RV water heater：Provide additional heating for domestic hot water to meet heating, showering, grooming and other needs.

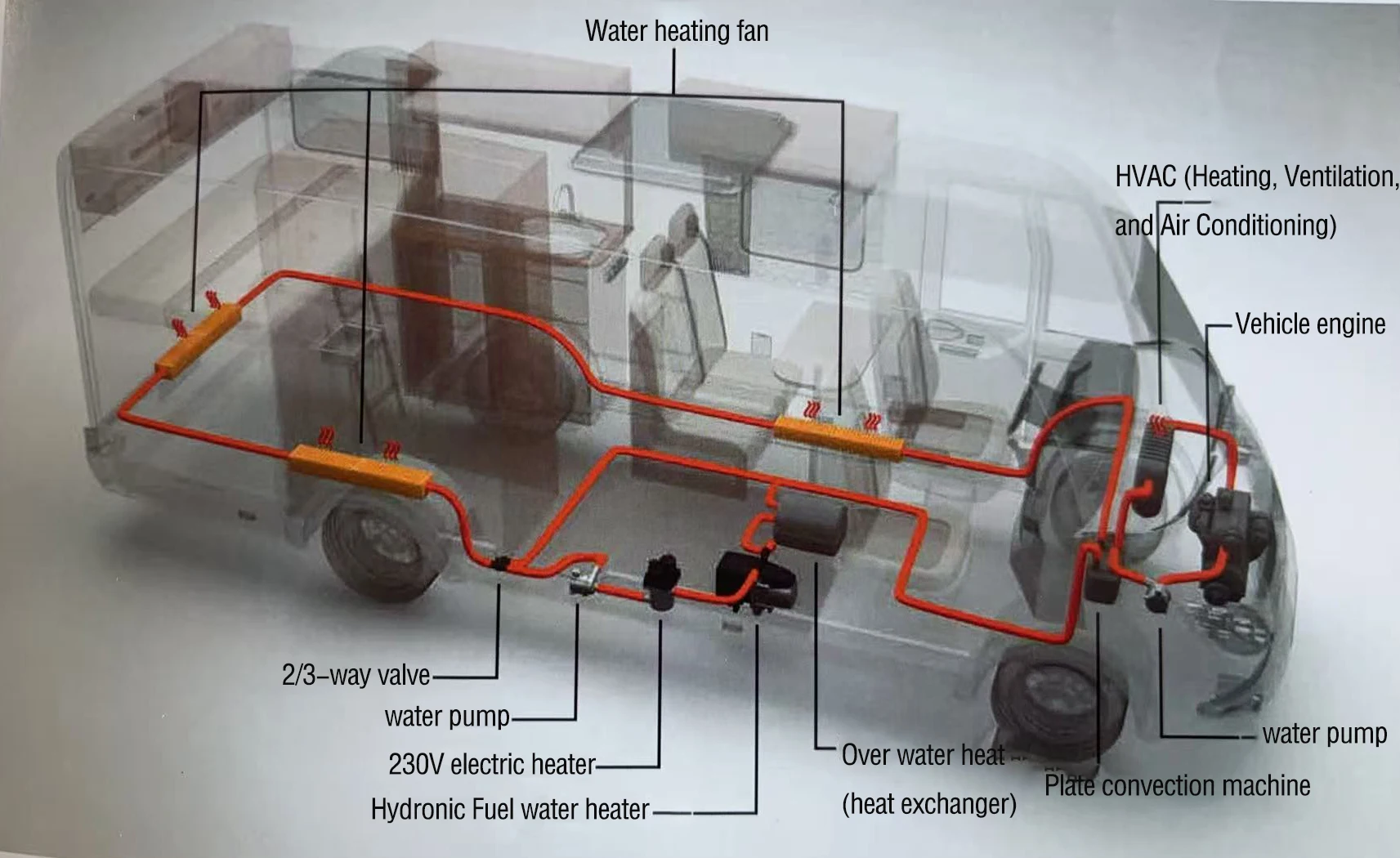

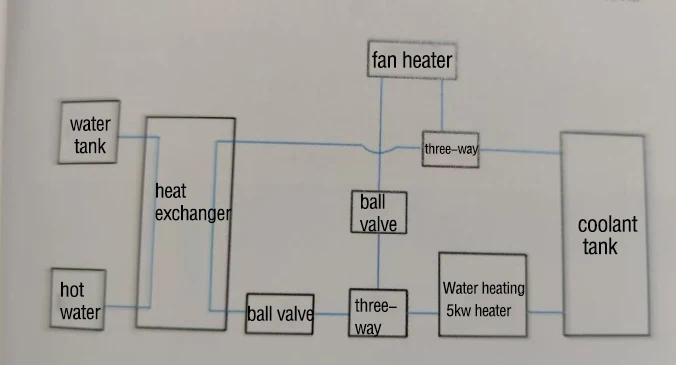

Hot Water/Heating System Scheme for Caravan Business Vehicle

This plan focuses on the design and implementation of hot water heating systems for caravans and commercial vehicles, combining vehicle structure, heat source types, system composition, and operating standards to provide comfortable and safe heating guarantees for caravans and commercial vehicles. The hot water heating system achieves heating through heat source transfer, circulation, heating, and air supply.

core component

1. Heat source and heating device Engine waste heat: When the vehicle engine is running, the coolant absorbs engine heat and becomes a natural heat source.Auxiliary heaters, such as "Plugtronic electric heater (230V)", "Hydronic fuel water heater", "over water heat (heat exchanger)", etc., are used to supplement heat when the engine is not running or there is insufficient waste heat. 2. Circulation and heating process The coolant circulates in the system through a water pump, absorbs heat when passing through heating devices such as fuel heaters and electric heaters, and then adjusts the flow rate through a 2/3 valve to ensure precise heat transfer. 3. Air supply and temperature control process The heated coolant flows through the HVAC system, transfers heat to the air inside the vehicle through the warm ventilation fan, and is finally sent into the cab by the water heater. The adjustment panel can control the air supply speed and temperature level, achieving personalized heating.

Company Profile

01:18

03:00

JP China Trade Int'l Co., Ltd. was founded in Beijing and is a Russian-Chinese joint venture company specialized in import and export business. Using our marketing advantages and strong sales and purchasing ability, our company has established reliable business relationships with clients. We have professional staff members, who have deep understanding of Chinese, European and American markets. Our working languages are Chinese, Russian and English. Our company provides all documents in several languages, such as price lists, contracts, product details and other documents. Our company supplies parking heaters and parts for auto conditioners , which are mainly exported to Russia, Belarus, Ukraine, Kazakhstan and other European countries. We can provide products according to customers' drawings and offer our clients reasonable prices. Our company also can help customers make moulds and develop new products. We sincerely welcome export-oriented enterprises of various countries and regions to cooperate with our company for a better future, exploring the international markets.

FAQ

1. who are we?
We are based in Beijing, China, start from 2010,sell to Oceania(25.00%),Western Europe(25.00%),North America(15.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South America(8.00%),Eastern Asia(6.00%),Southern Europe(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Parking Heater

4. why should you buy from us not from other suppliers?
Own factory, 20 yesra histry. Annual production of our factory is 150,000 sets. Our parking heater have exported to Europe, the United States,Japan,and other 60 countries.Own agent in UK, AU and Canada. annual export volume is more than 20,000 sets.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Warranty:: 2 years

Heater Dimension:: 510*450*300mm

Car Model:: all

Fuel heat power:: 2KW/4KW

Fuel consumption:: 160/320/480 g/H

Short-term Maximum Power Consumption:: 5.6A

Tank capacity:: 10L

Operating altitude:: ≤5000m
